Build Content Bundle

Content bundles are archives of all the required container images required for one or more cluster profiles. The content bundle includes Helm charts, Packs, and manifest files needed to deploy your Edge host cluster. In addition to core container images, the content bundle can include artifacts from your applications that you wish to deploy to the Edge cluster. Cluster Profiles are the primary source for creating these content bundles, which can be built using either the Palette CLI or the Palette Edge CLI.

warning

Currently, the content bundles include Helm charts and Packs. However, keep in mind that the container images of the Helm Charts and Packs are extracted and pre-deployed into the container runtime containerd for optimization.

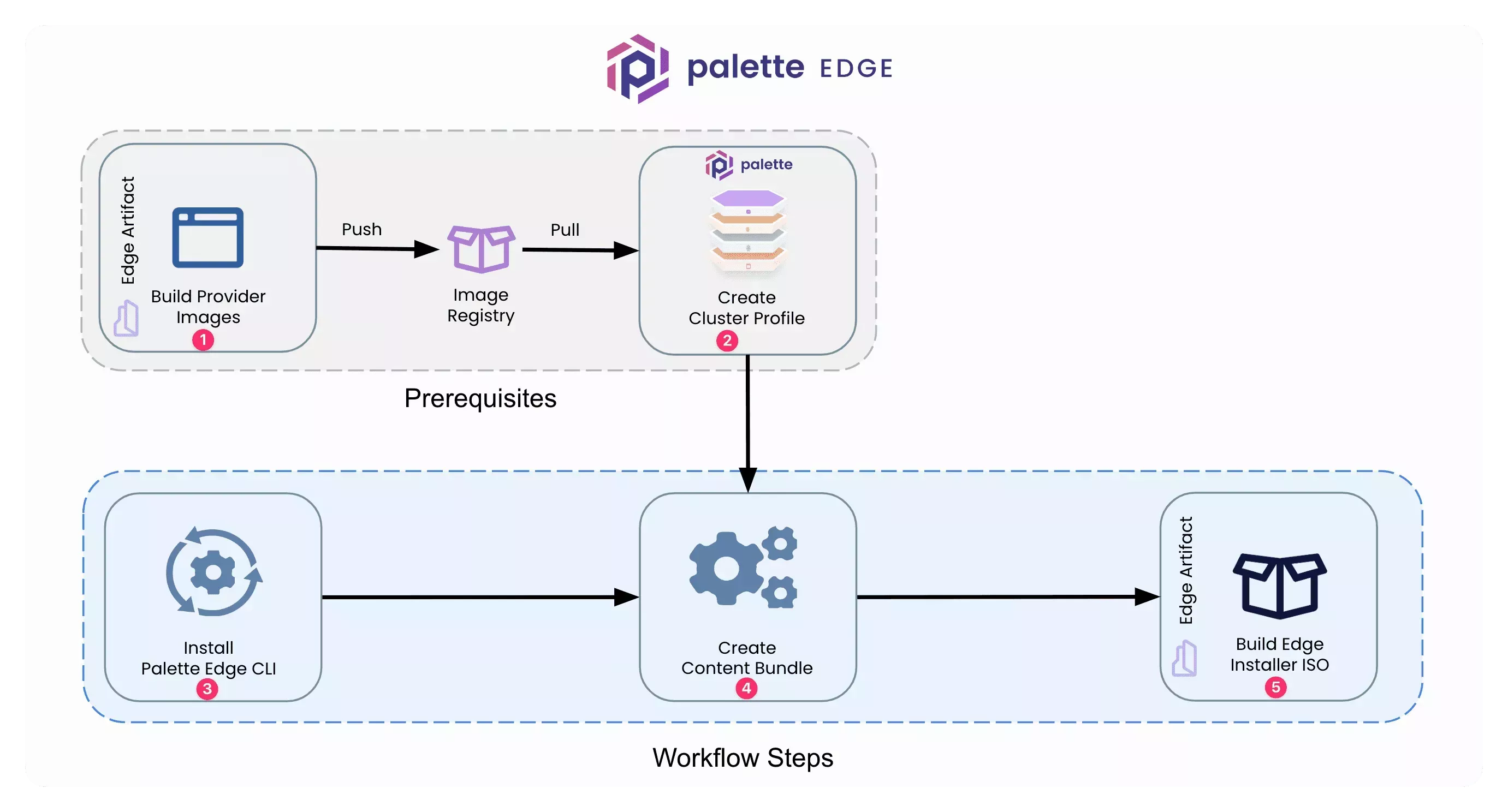

The diagram below displays the overarching steps to build the Edge installer ISO using a content bundle. The diagram also highlights the primary prerequisites to create a content bundle.

Benefits of Content Bundle

Creating a content bundle provides several benefits that may address common use cases related to deploying Edge hosts.

• Preloading required software dependencies removes the need to download assets during cluster deployment.

• If connectivity to a container registry is unstable or bandwidth limited, preloading the software dependencies can address these concerns.

• Preloading required software dependencies optimizes the Edge host deployment process when the Edge host is in an internet bandwidth-constrained environment.

• Organizations that want better control over the software used by their Edge hosts can use content bundles to ensure that only approved software is consumed.

Limitation

warning

If your cluster uses the legacy Harbor Edge-Native Config pack, you cannot use the Palette CLI to build content bundles or export cluster definitions. You must use the Palette Edge CLI.

Refer to Migrate From Harbor Edge-Native Config Pack to learn how to migrate from the legacy pack to the Registry Connect pack.

• You can configure built-in registry packs or your own custom OCI registry. Both configurations require the Registry Connect pack. The Registry Connect pack does not require a local Harbor registry. Built-in registries must be configured using either the Harbor pack or the Zot pack. Custom registries allow you to configure custom packs. For more information, refer to Deploy Cluster with External Registry and Deploy with Primary Registry.

• Edge content bundles created with Edge CLI version greater than 4.5.5, are incompatible with Palette agent versions before 4.5.4 due to a new format schema. If you are using an older version of the Palette agent, use the Edge CLI version 4.5.3 or earlier to create content bundles. To download the latest version of the Edge CLI, visit the Downloads page.

• Content bundles built with the Palette Edge CLI versions earlier than 4.5.20 cannot be used to provision multi-node clusters. Download the latest version of the Palette Edge CLI from the Downloads page to build the content bundle instead.

Prerequisites

• Linux Machine (Physical or VM) with an AMD64 architecture.

• Palette API key. Refer to the User Authentication resource to learn how to create a Palette API key.

• An Edge Native cluster profile. Refer to Create Edge Native Cluster Profile guide to learn how to create an Edge Native cluster profile. You may also have other add-on profiles that you wish to attach to your cluster.

• Content tags in your profiles highlight the exact location of container images to be downloaded.

Create Content Bundle

Palette CLI

1. Download the Palette CLI. Refer to the Palette CLI Compatibility Matrix to find a compatible CLI version and replace <palette-cli-version> with the selected version.

   VERSION=<palette-cli-version>
   wget https://software.spectrocloud.com/palette-cli/v$VERSION/linux/cli/palette
   chmod +x palette

2. Use the following command to move the palette binary to the /usr/local/bin directory to make the binary available in your system $PATH. This will allow you to issue the palette command from any directory in your development environment.

   mv palette /usr/local/bin

3. Verify that the Palette CLI is part of your system path by issuing the Palette CLI version command.

   palette version

   Palette CLI version: [version number]

4. Authenticate with Palette using the login command. Replace <your-api-key> with your Palette API key.

   palette login --api-key <your-api-key> --console-url https://console.spectrocloud.com/

5. Log in to the Palette console.

6. Select the project you want to deploy the Edge host to and copy the project ID. You can find the project ID at the top right side corner of the landing page below the user drop-down menu.

7. Navigate to the left main menu and select Profiles.

8. Use the Cloud Types drop-down menu and select Edge Native.

9. Click on the cluster profile you want to include in the content bundle.

10. You can find the cluster profile ID by reviewing the URL of the current page. The cluster profile ID is the last value in the URL. Repeat this step for all the cluster profiles whose images you want to include in the content bundle.

11. (Optional) If your cluster profile uses images or Helm charts that are hosted on private registries that require authentication, you must use the content registry-login command to authenticate with each one of the registries. Replace <registry-address>, <registry-username>, and <registry-password> with your registry credentials. Refer to the content registry-login CLI command page for more information.

    palette content registry-login --registry <registry-address> \
    --username <registry-username> \
    --password <registry-password>

12. Issue the following command to create the content bundle. Replace the placeholder values with your actual values.

    palette content build --arch <bundle-architecture> \
     --project-id <project-id> \
     --profiles <cluster-profile-id1,cluster-profile-id2...> \
     --name <bundle-name>
    warning

    If your registry enforces image signature verification, we recommend omitting the --arch option.
    This is because image signatures are tied to the image's digest, and that digest depends on the manifest type.

    When you sign a multi-architecture image, the signature is generated on its index manifest.
    If you later specify --arch, the CLI resolves each image to a single-architecture manifest, which produces a different digest.

    As a result, Cosign will fail to verify the signature if it was originally created for the multi-arch image. However, if you omit --arch, the Palette CLI will pull the image as-is, preserving their existing signature.

    The result is a .tar.zst content bundle that you can use to preload into your installer. The bundle is generated in the <current-directory>/output/content-bundle/ folder by default. For more information about how to use content bundles, refer to Build Installer ISO or

    Upload Content Bundle through Local UI.

    tip

    You can use the --existing-bundles flag with the build command to include existing .tar.zst bundle archives as part of the content bundle build. This avoids the need to redownload images, charts, and raw files that are already present in local bundles. Refer to the content build CLI command page for a complete list of available flags and examples.

13. (Optional) You can download the cluster definition and the content bundle in a single step. A cluster definition contains one or more cluster profiles, including the profile variables used in the profiles. In local Edge deployments, cluster definitions are required to provision a cluster from Local UI. For more information, refer to Create a Cluster with Local UI.

    To download the cluster definition together with the content bundle, provide the following flags to the build command.

    palette content build --arch <bundle-architecture> \
     --project-id <project-id> \
     --profiles <cluster-profile-id1,cluster-profile-id2...> \
     --cluster-definition-name <cluster-definition-name> \
     --cluster-definition-profile-ids <cluster-definition-profile-ids> \
     --name <bundle-name>

    Compared with the previous command, this command has two additional flags.

    Flag	Description
    --cluster-definition-name	Filename of the cluster definition tgz file.
    --cluster-definition-profile-ids	List of cluster profile IDs to be included in the cluster definition.

    This command will generate a .tgz cluster definition file in the <current-directory>/output/ folder, and a content bundle in the <current-directory>/output/content-bundle/ folder by default. When you create a cluster definition and content bundle using a single build command, the cluster definition is also embedded into the content bundle.

Palette Edge CLI

1. Download the Palette Edge CLI. Refer to the Palette CLI Compatibility Matrix to find a compatible CLI version and replace <palette-edge-cli-version> with the selected version.

   VERSION=<palette-edge-cli-version>
   wget https://software.spectrocloud.com/stylus/v$VERSION/cli/linux/palette-edge
   chmod +x palette-edge

2. Use the following command to move the palette-edge binary to the /usr/local/bin directory to make the binary available in your system $PATH. This will allow you to issue the palette-edge command from any directory in your development environment.

   mv palette-edge /usr/local/bin

3. Verify the installation of the Palette Edge CLI by issuing the following command. The output will display a list of available commands and flags for the CLI.

   palette-edge --help

    Usage:
      palette-edge-cli [command]

    Available Commands:
      build            Build the content
      build-from-local
      deploy
      help             Help about any command
      show             Display all the preset default values and supported OS and K8S flavors
      upload

    Flags:
          --config string    config file (default is $HOME/.palette-edge-cli.yaml)
          --debug            set to enable debug logging [default: false]
      -h, --help             help for palette-edge-cli
          --logfile string   log file name
          --trace            set to enable trace logging [default: false]

    Use "palette-edge-cli [command] --help" for more information about a command.

4. Log in to Palette.

5. Select the project you want to deploy the Edge host to and copy down the project ID. You can find the project ID at the top right side corner of the landing page below the user drop-down menu.

6. Navigate to the left main menu and select Profiles.

7. Use the Cloud Types drop-down menu and select Edge Native.

8. Click on the cluster profile you want to include in the content bundle.

9. You can find the cluster profile ID by reviewing the URL of the current page. The cluster profile ID is the last value in the URL. Refer to the Project page for details. Repeat this step for all the cluster profiles you want to specify in the content bundle.

   https://console.spectrocloud.com/projects/yourProjectId/profiles/cluster/<YourClusterProfileHere>

10. (Optional) If your cluster profile uses images or helm charts that are hosted on private registries that require authentication, you must provide a JSON file that contains the necessary credentials to access the registry.

    Helm

    For authenticated access to Helm charts, your must provide credentials with the following schema. Use a key at the root level of the JSON object named "helm" and set its value to a list. The list is a list of credentials for each Helm chart repository. For each set of credentials, use an object in the list with the keys "endpoint", "username", and "password".

    {
      "helm": [
          {
            "endpoint": <Registry URL>,
            "username": <Registry username>,
            "password": <Password>
          }
      ]
    }

    For example, the following JSON code is a valid set of credentials.

    {
      "helm": [
        {
          "endpoint": "harbor.abcd.com",
          "username": "admin",
          "password": "xxxxxxxx"
        }
      ]
    }


    For image registries, you must provide credentials with the following schema. Provide a key at the root level of the JSON object named "image" and set its value to a list. The list is a list of credentials for each Helm chart repository. For each set of credentials, use an object in the list with the keys "endpoint", "username", and "password".

    {
      "image": [
          {
            "endpoint": <Registry URL>,
            "username": <Registry username>,
            "password": <Password>
          }
      ]
    }

    For example, the following JSON code provides access to two registries ttl.sh and docker.io with two username-password pairs.

    {
      "image": [
        {
          "endpoint": "ttl.sh",
          "username": "admin",
          "password": "*********"
        },
        {
          "endpoint": "docker.io",
          "username": "username",
          "password": "*********"
        }
      ]
    }

    For Google Container Registry (GCR) access, you need to set the username field to "_json_key" and set the password to an JSON object containing the following fields.

    Field	Description
    type	The type of credential, which is service_account for Google Cloud service accounts.
    project_id	The project ID associated with your Google Cloud project. For example, spectro-images.
    private_key_id	A unique identifier for the private key associated with the service account.
    private_key	The private key that is used to authenticate to Google Cloud services, encapsulated in a PEM block.
    client_email	The email address associated with the service account, used for authentication.
    client_id	The client ID associated with the service account.
    auth_uri	The URI for the authentication provider, typically Google's OAuth 2.0 server.
    token_uri	The URI for obtaining tokens from Google's OAuth 2.0 server.
    auth_provider_x509_cert_url	The URL of the public x509 certificate for the authentication provider.
    client_x509_cert_url	The URL of the public x509 certificate for the client (service account).

    For example, the following is a valid set of credentials for a GCR registry.

    {
      "image": [
        {
          "endpoint": "gcr.io",
          "username": "_json_key",
          "password": {
            "type": "service_account",
            "project_id": "spectro-images",
            "private_key_id": "847c09190xxxxxxxxxxxxc4ebc",
            "private_key": "-----BEGIN KEY-----MIIEvQIBADA ... -----Shortened for brevity",
            "client_email": "xxx.iam.gserviceaccount.com",
            "client_id": "115830xxxxxxx340453",
            "auth_uri": "https://accounts.google.com/o/oauth2/auth",
            "token_uri": "https://oauth2.googleapis.com/token",
            "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
            "client_x509_cert_url": "https://www.googleapis.com/robot/v1/metadata/x509/spectro-images-viewer%40spectro-images.iam.gserviceaccount.com"
          }
        }
      ]
    }

    After creating the file, use the -cred-file-path filepath flag to include the credentials in the command.

11. Navigate back to your terminal window and issue the following command to create the content bundle. Replace the placeholder values with your actual values.

    ./palette-edge build --api-key <API_KEY> \
     --project-id <PROJECT_ID> \
     --cluster-profile-ids <CLUSTER_PROFILE_ID1,CLUSTER_PROFILE_ID2...> \
     --palette-endpoint <PALETTE_API_ENDPOINT> \
     --outfile <BUNDLE_NAME> \
     --cred-file-path <FILE_PATH> \
     --private-key <PRIVATE_KEY_PATH>

    Flag	Description
    --api-key	Your Palette API key.
    --cluster-profile-ids	Comma-separated list of cluster profile IDs to download content for. Ensure that between all the profiles you include in the content bundle, only one infrastructure layer exists. For example, you can have one infrastructure profile and many add-on files, or one full profile and many add-on files, but you cannot have multiple infrastructure and full-on profiles. For more information about the types of profiles, refer to Cluster Profile.
    --cred-file-path	Path to the JSON file storing registry credentials if you are using a private registry.
    --include-core-images-only	Whether to include images for the Palette agent that are necessary for cluster creation only. By default, content bundles include images to support both cluster creation and cluster management. In the case of installations of locally managed Edge hosts, we recommend using this option to reduce the size of the content bundle, as Local UI currently does not offer native backup and support features.
    --outfile	Name of your content bundle. The final file name should have the following pattern: core-<bundle-name>-random-string.
    --palette-endpoint	API endpoint for your Palette instance.
    --project-id	The ID of your Palette project.
    --private-key	The path to the private key used to sign the content bundle and cluster definition if it is present. This is necessary if your Edge host has an embedded corresponding public key. For more information, refer to Embed Public Key in Edge Artifacts.

    The result is a content bundle that you can use to preload into your installer. The content bundle will be a .zst file in a folder that starts with content- followed by a random string. For more information about how to use content bundles, Build Installer ISO or Upload Content Bundle through Local UI.

    Alternatively, you can use the ISO version of the content bundle and transfer it to a USB drive to be used separately at the time of Edge host installation using the -iso flag in your build command. Doing so will override the file extension you provide using the --outfile flag.

12. (Optional) You can download the cluster definition and the content bundle in a single step. A cluster definition contains one or more cluster profiles, including the profile variables used in the profiles. In air-gapped Edge deployments, cluster definitions are required to provision a cluster from Local UI. For more information, refer to Create a Cluster with Local UI.

    To download the cluster definition together with content bundle, provide the following flags to the build command.

     ./palette-edge build --api-key <API_KEY> \
     --project-id <PROJECT_ID> \
     --cluster-profile-ids <CLUSTER_PROFILE_ID1,CLUSTER_PROFILE_ID2...> \
     --palette-endpoint <PALETTE_API_ENDPOINT> \
     --outfile <BUNDLE_NAME> \
     --cred-file-path <FILE_PATH> \
     --cluster-definition-name <CLUSTER_DEFINITION_FILENAME> \
     --cluster-definition-profile-ids <CLUSTER_PROFILE_IDS>

    Compared with the previous command, this command has two additional flags.

    Flag	Description
    --cluster-definition-name	Filename of the cluster definition tgz file.
    --cluster-definition-profile-ids	List of cluster profile IDs to be included in the cluster definition.

    This command will produce another document named CLUSTER_DEFINITION_FILENAME.tgz at the root directory of CanvOS. This is the cluster definition file. Your content bundle will not be affected by the additional flags and will still be at the same location.

Validate

You can validate that the ISO image has not been corrupted by attempting to flash a bootable device. Most software that creates a bootable device will validate the ISO image before the flash process.

Next Steps

Your next step is to build the Edge artifacts so that you can deploy an Edge host. To create an Edge artifacts, check out the Build Images guide.
