Deploy an AWS IaaS Cluster with Crossplane
Palette supports using Crossplane to create and manage Kubernetes host clusters across major infrastructure providers. This section guides you on how to use Crossplane to deploy a Palette-managed Kubernetes cluster in AWS.
Prerequisites
- A Palette account and API key. Refer to the Create API Key page for instructions on creating an API key.
- A public AWS cloud account with the required IAM Policies.
- An SSH key pair available in the region where you want to deploy the cluster. Check out the AWS Create EC2 SSH Key Pair page for guidance.
- The AWS account must be registered in Palette. Follow the Add an AWS Account to Palette guide to register your account in Palette.
- A Kubernetes cluster with at least 2 GB of RAM. This guide uses a kind cluster as an example. Refer to the kind Quick Start guide to learn how to install kind and create a cluster.
- The following software must be installed on your host:
Deploy an AWS IaaS Cluster with Crossplane
-
Open a terminal session and set the kubectl context to your cluster. Replace
<cluster-name>with the name of your cluster.kubectl cluster-info --context <cluster-name>Example outputKubernetes control plane is running at https://127.0.0.1:65306
CoreDNS is running at https://127.0.0.1:65306/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'. -
Next, add the Crossplane Helm chart.
helm repo add \
crossplane-stable https://charts.crossplane.io/stable
helm repo updateExample output"crossplane-stable" has been added to your repositories
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "ingress-nginx" chart repository
...Successfully got an update from the "crossplane-stable" chart repository
Update Complete. ⎈Happy Helming!⎈ -
Install the Crossplane components using the
helm installcommand.helm install crossplane \
crossplane-stable/crossplane \
--namespace crossplane-system \
--create-namespaceExample outputNAME: crossplane
LAST DEPLOYED: Fri Aug 8 08:27:46 2025
NAMESPACE: crossplane-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Release: crossplane
Chart Name: crossplane
Chart Description: Crossplane is an open source Kubernetes add-on that enables platform teams to assemble infrastructure from multiple vendors, and expose higher level self-service APIs for application teams to consume.
Chart Version: 1.20.0
Chart Application Version: 1.20.0
Kube Version: v1.33.1Verify the installation with the
kubectl get podscommand. The output must contain two Crossplane pods with aRunningstatus.kubectl get pods --namespace crossplane-systemExample outputNAME READY STATUS RESTARTS AGE
crossplane-869d89c8f8-7jc6c 1/1 Running 0 20s
crossplane-rbac-manager-784b496b-8mr6z 1/1 Running 0 20s
-
Once Crossplane is installed, create a folder to store the Kubernetes configuration files.
mkdir crossplane-aws -
Fetch the latest version of the Palette Crossplane provider. Alternatively, identify your desired version from the Upbound Marketplace and set the value manually.
PALETTE_CROSSPLANE_PROVIDER_VERSION=$(curl --silent https://api.github.com/repos/crossplane-contrib/provider-palette/releases/latest | jq --raw-output .tag_name)
echo Palette Crossplane Provider Version: $PALETTE_CROSSPLANE_PROVIDER_VERSION -
Create the following Kubernetes configuration for the Palette Crossplane provider.
cat << EOF > crossplane-aws/provider-palette.yaml
apiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
name: provider-palette
spec:
package: xpkg.upbound.io/crossplane-contrib/provider-palette:$PALETTE_CROSSPLANE_PROVIDER_VERSION
EOFVerify that the file was created and populated with the expected Palette Crossplane provider version.
cat crossplane-aws/provider-palette.yamlExample outputapiVersion: pkg.crossplane.io/v1
kind: Provider
metadata:
name: provider-palette
spec:
package: xpkg.upbound.io/crossplane-contrib/provider-palette:v0.24.0 -
Issue the command below to install the Palette Crossplane provider. Crossplane installs the CRDs that allow you to create Palette resources directly inside Kubernetes.
kubectl apply --filename crossplane-aws/provider-palette.yamlExample outputprovider.pkg.crossplane.io/provider-palette createdCheck the installation with the
kubectl get providerscommand.kubectl get providersExample outputNAME INSTALLED HEALTHY PACKAGE AGE
provider-palette True True xpkg.upbound.io/crossplane-contrib/provider-palette:v0.24.0 40s -
Set the following variables for your Palette environment:
<palette-api-key>- Your Palette API key.<palette-project-name>- The name of the Palette project you are deploying your cluster in.<palette-endpoint>- The endpoint of your Palette environment.
PALETTE_API_KEY=<palette-api-key>
PALETTE_PROJECT_NAME=<palette-project-name>
PALETTE_HOST=<palette-endpoint> -
Create a file to store the Kubernetes Secret containing your Palette API key and environment details. The Palette provider requires credentials to create and manage resources.
cat << EOF > crossplane-aws/secret-aws.yaml
apiVersion: v1
kind: Secret
metadata:
name: palette-creds
namespace: crossplane-system
type: Opaque
stringData:
credentials: |
{
"api_key": "$PALETTE_API_KEY",
"project_name": "$PALETTE_PROJECT_NAME",
"host": "$PALETTE_HOST"
}
EOFVerify that the file was created and populated with the expected API key and environment values.
cat crossplane-aws/secret-aws.yamlExample outputapiVersion: v1
kind: Secret
metadata:
name: palette-creds
namespace: crossplane-system
type: Opaque
stringData:
credentials: |
{
"api_key": "**************",
"project_name": "Default",
"host": "console.spectrocloud.com"
} -
Create the Kubernetes Secret.
kubectl apply --filename crossplane-aws/secret-aws.yamlExample outputsecret/palette-creds created -
Create a file to store the
ProviderConfigobject. This object configures the Palette Crossplane provider with the Secret containing the Palette API key.cat << EOF > crossplane-aws/providerconfig-aws.yaml
apiVersion: palette.crossplane.io/v1beta1
kind: ProviderConfig
metadata:
name: default
spec:
credentials:
source: Secret
secretRef:
name: palette-creds
namespace: crossplane-system
key: credentials
EOF -
Create the Kubernetes
ProviderConfigobject.kubectl apply --filename crossplane-aws/providerconfig-aws.yamlExample outputproviderconfig.palette.crossplane.io/default created -
Once the Palette Crossplane provider is installed and set up, create a file to store the cluster profile configuration.
warningWe recommend creating the cluster profile file first and directly pasting the contents into the file. Redirecting cluster profile configurations from the terminal into the file can misinterpret escape characters, resulting in an invalid file.
vi crossplane-aws/cluster-profile-aws.yaml -
Paste the Kubernetes configuration below into the text editor window that opens. Save the file and exit.
apiVersion: cluster.palette.crossplane.io/v1alpha1
kind: Profile
metadata:
name: aws-crossplane-cluster-profile
namespace: crossplane-system
spec:
forProvider:
cloud: "aws"
description: "AWS Crossplane cluster profile"
name: "aws-crossplane-cluster-profile"
type: "cluster"
pack:
- name: "ubuntu-aws"
tag: "22.04"
uid: "63bd0373764141c6622c3062"
registryUid: "5eecc89d0b150045ae661cef"
values:
"# Spectro Golden images includes most of the hardening as per CIS Ubuntu Linux 22.04 LTS Server L1 v1.0.0
standards\n\n# Uncomment below section to\n# 1. Include custom files to be copied over to the nodes
and/or\n# 2. Execute list of commands before or after kubeadm init/join is
executed\n#\n#kubeadmconfig:\n# preKubeadmCommands:\n# - echo \"Executing pre kube admin config
commands\"\n# - update-ca-certificates\n# - 'systemctl restart containerd; sleep 3'\n# - 'while [ ! -S
/var/run/containerd/containerd.sock ]; do echo \"Waiting for containerd...\"; sleep 1;
done'\n# postKubeadmCommands:\n# - echo \"Executing post kube admin config commands\"\n# files:\n# -
targetPath: /usr/local/share/ca-certificates/mycom.crt\n# targetOwner:
\"root:root\"\n# targetPermissions: \"0644\"\n# content: |\n# -----BEGIN
CERTIFICATE-----\n# MIICyzCCAbOgAwIBAgIBADANBgkqhkiG9w0BAQsFADAVMRMwEQYDVQQDEwprdWJl\n# cm5ldGVzMB4XDTIwMDkyMjIzNDMyM1oXDTMwMDkyMDIzNDgyM1owFTETMBEGA1UE\n# AxMKa3ViZXJuZXRlczCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAMdA\n# nZYs1el/6f9PgV/aO9mzy7MvqaZoFnqO7Qi4LZfYzixLYmMUzi+h8/RLPFIoYLiz\n# qiDn+P8c9I1uxB6UqGrBt7dkXfjrUZPs0JXEOX9U/6GFXL5C+n3AUlAxNCS5jobN\n# fbLt7DH3WoT6tLcQefTta2K+9S7zJKcIgLmBlPNDijwcQsbenSwDSlSLkGz8v6N2\n# 7SEYNCV542lbYwn42kbcEq2pzzAaCqa5uEPsR9y+uzUiJpv5tDHUdjbFT8tme3vL\n# 9EdCPODkqtMJtCvz0hqd5SxkfeC2L+ypaiHIxbwbWe7GtliROvz9bClIeGY7gFBK\n# jZqpLdbBVjo0NZBTJFUCAwEAAaMmMCQwDgYDVR0PAQH/BAQDAgKkMBIGA1UdEwEB\n# /wQIMAYBAf8CAQAwDQYJKoZIhvcNAQELBQADggEBADIKoE0P+aVJGV9LWGLiOhki\n# HFv/vPPAQ2MPk02rLjWzCaNrXD7aPPgT/1uDMYMHD36u8rYyf4qPtB8S5REWBM/Y\n# g8uhnpa/tGsaqO8LOFj6zsInKrsXSbE6YMY6+A8qvv5lPWpJfrcCVEo2zOj7WGoJ\n# ixi4B3fFNI+wih8/+p4xW+n3fvgqVYHJ3zo8aRLXbXwztp00lXurXUyR8EZxyR+6\n# b+IDLmHPEGsY9KOZ9VLLPcPhx5FR9njFyXvDKmjUMJJgUpRkmsuU1mCFC+OHhj56\n# IkLaSJf6z/p2a3YjTxvHNCqFMLbJ2FvJwYCRzsoT2wm2oulnUAMWPI10vdVM+Nc=\n# -----END
CERTIFICATE-----"
- name: "kubernetes"
tag: "1.32.4"
uid: "687bbdf5511462f044b2c727"
registryUid: "5eecc89d0b150045ae661cef"
values:
"# spectrocloud.com/enabled-presets: Kube Controller Manager:loopback-ctrlmgr,Kube
Scheduler:loopback-scheduler,Azure Disk Encryption
Set:disable-azure-disk-encryption\npack:\n content:\n images:\n - image:
registry.k8s.io/coredns/coredns:v1.11.3\n - image: registry.k8s.io/etcd:3.5.16-0\n - image:
registry.k8s.io/kube-apiserver:v1.32.4\n - image:
registry.k8s.io/kube-controller-manager:v1.32.4\n - image:
registry.k8s.io/kube-proxy:v1.32.4\n - image: registry.k8s.io/kube-scheduler:v1.32.4\n - image:
registry.k8s.io/pause:3.9\n - image: registry.k8s.io/pause:3.8\n #CIDR Range for Pods in
cluster\n # Note : This must not overlap with any of the host or service network\n podCIDR:
\"192.168.0.0/16\"\n #CIDR notation IP range from which to assign service cluster IPs\n # Note : This
must not overlap with any IP ranges assigned to nodes for pods.\n serviceClusterIpRange:
\"10.96.0.0/12\"\n # serviceDomain:
\"cluster.local\"\n\nkubeadmconfig:\n apiServer:\n extraArgs:\n # Note : secure-port flag is used
during kubeadm init. Do not change this flag on a running cluster\n secure-port:
\"6443\"\n anonymous-auth: \"true\"\n profiling: \"false\"\n disable-admission-plugins:
\"AlwaysAdmit\"\n default-not-ready-toleration-seconds:
\"60\"\n default-unreachable-toleration-seconds: \"60\"\n enable-admission-plugins:
\"AlwaysPullImages,NamespaceLifecycle,ServiceAccount,NodeRestriction,PodSecurity\"\n admission-control-config-file:
\"/etc/kubernetes/pod-security-standard.yaml\"\n audit-log-path:
/var/log/apiserver/audit.log\n audit-policy-file:
/etc/kubernetes/audit-policy.yaml\n audit-log-maxage: \"30\"\n audit-log-maxbackup:
\"10\"\n audit-log-maxsize: \"100\"\n authorization-mode:
RBAC,Node\n kubelet-certificate-authority: \"/etc/kubernetes/pki/ca.crt\"\n tls-cipher-suites:
\"TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_128_GCM_SHA256\"\n extraVolumes:\n -
name: audit-log\n hostPath: /var/log/apiserver\n mountPath:
/var/log/apiserver\n pathType: DirectoryOrCreate\n - name: audit-policy\n hostPath:
/etc/kubernetes/audit-policy.yaml\n mountPath: /etc/kubernetes/audit-policy.yaml\n readOnly:
true\n pathType: File\n - name: pod-security-standard\n hostPath:
/etc/kubernetes/pod-security-standard.yaml\n mountPath:
/etc/kubernetes/pod-security-standard.yaml\n readOnly: true\n pathType:
File\n controllerManager:\n extraArgs:\n profiling: \"false\"\n terminated-pod-gc-threshold:
\"25\"\n use-service-account-credentials: \"true\"\n feature-gates:
\"RotateKubeletServerCertificate=true\"\n scheduler:\n extraArgs:\n profiling:
\"false\"\n kubeletExtraArgs:\n read-only-port: \"0\"\n event-qps: \"0\"\n feature-gates:
\"RotateKubeletServerCertificate=true\"\n protect-kernel-defaults:
\"true\"\n rotate-server-certificates: \"true\"\n tls-cipher-suites:
\"TLS_ECDHE_ECDSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256,TLS_ECDHE_ECDSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384,TLS_ECDHE_RSA_WITH_CHACHA20_POLY1305,TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_256_GCM_SHA384,TLS_RSA_WITH_AES_128_GCM_SHA256\"\n files:\n -
path: hardening/audit-policy.yaml\n targetPath: /etc/kubernetes/audit-policy.yaml\n targetOwner:
\"root:root\"\n targetPermissions: \"0600\"\n - path: hardening/90-kubelet.conf\n targetPath:
/etc/sysctl.d/90-kubelet.conf\n targetOwner: \"root:root\"\n targetPermissions: \"0600\"\n -
targetPath: /etc/kubernetes/pod-security-standard.yaml\n targetOwner:
\"root:root\"\n targetPermissions: \"0600\"\n content: |\n apiVersion:
apiserver.config.k8s.io/v1\n kind: AdmissionConfiguration\n plugins:\n - name:
PodSecurity\n configuration:\n apiVersion:
pod-security.admission.config.k8s.io/v1\n kind:
PodSecurityConfiguration\n defaults:\n enforce:
\"baseline\"\n enforce-version: \"v1.32\"\n audit:
\"baseline\"\n audit-version: \"v1.32\"\n warn:
\"restricted\"\n warn-version: \"v1.32\"\n exemptions:\n # Array of
authenticated usernames to exempt.\n usernames: []\n # Array of runtime class
names to exempt.\n runtimeClasses: []\n # Array of namespaces to
exempt.\n namespaces: [kube-system]\n\n preKubeadmCommands:\n # For enabling
'protect-kernel-defaults' flag to kubelet, kernel parameters changes are required\n - 'echo \"====>
Applying kernel parameters for Kubelet\"'\n - 'sysctl -p /etc/sysctl.d/90-kubelet.conf'\n - 'test -f
/etc/containerd/ca.crt && cp /etc/containerd/ca.crt /usr/local/share/ca-certificates/container.crt &&
update-ca-certificates && systemctl restart
containerd'\n #postKubeadmCommands:\n\n postKubeadmCommands:\n - 'chmod 600
/var/lib/kubelet/config.yaml'\n # - 'echo \"List of post kubeadm commands to be executed\"'\n\n# Client
configuration to add OIDC based authentication flags in kubeconfig\n#clientConfig:\n #oidc-issuer-url:
\"{{ .spectro.pack.kubernetes.kubeadmconfig.apiServer.extraArgs.oidc-issuer-url }}\"\n #oidc-client-id:
\"{{ .spectro.pack.kubernetes.kubeadmconfig.apiServer.extraArgs.oidc-client-id
}}\"\n #oidc-client-secret: 1gsranjjmdgahm10j8r6m47ejokm9kafvcbhi3d48jlc3rfpprhv\n #oidc-extra-scope:
profile,email"
- name: "cni-calico"
tag: "3.30.1"
uid: "687bbdcf511462ef363aa0b4"
registryUid: "5eecc89d0b150045ae661cef"
values:
"# spectrocloud.com/enabled-presets: Microk8s:microk8s-false\npack:\n content:\n images:\n -
image: us-docker.pkg.dev/palette-images/packs/calico/3.30.1/cni:v3.30.1\n - image:
us-docker.pkg.dev/palette-images/packs/calico/3.30.1/node:v3.30.1\n - image:
us-docker.pkg.dev/palette-images/packs/calico/3.30.1/kube-controllers:v3.30.1\n\nmanifests:\n calico:\n microk8s:
\"false\"\n images:\n cni: \"\"\n node: \"\"\n kubecontroller: \"\"\n # IPAM type to
use. Supported types are calico-ipam, host-local\n ipamType:
\"calico-ipam\"\n\n calico_ipam:\n assign_ipv4: true\n assign_ipv6: false\n\n # Should be
one of CALICO_IPV4POOL_IPIP or CALICO_IPV4POOL_VXLAN \n encapsulationType:
\"CALICO_IPV4POOL_IPIP\"\n\n # Should be one of Always, CrossSubnet, Never\n encapsulationMode:
\"Always\"\n\n env:\n # Additional env variables for
calico-node\n calicoNode:\n #IPV6: \"autodetect\"\n #FELIX_IPV6SUPPORT:
\"true\"\n #CALICO_IPV6POOL_NAT_OUTGOING: \"true\"\n #CALICO_IPV4POOL_CIDR:
\"192.168.0.0/16\"\n # For EKS cluster with static provisioning, set IP_AUTODETECTION_METHOD to
\"interface=eth0\"\n #IP_AUTODETECTION_METHOD: \"first-found\"\n\n # Additional env variables
for calico-kube-controller deployment\n calicoKubeControllers:\n #LOG_LEVEL:
\"info\"\n #SYNC_NODE_LABELS: \"true\""
- name: "csi-aws-ebs"
tag: "1.43.0"
uid: "687bbdd7511462ef75ba7ee1"
registryUid: "5eecc89d0b150045ae661cef"
values:
"pack:\n content:\n images:\n - image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/aws-ebs-csi-driver:v1.43.0\n - image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-provisioner:v5.2.0-eks-1-33-1\n -
image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-attacher:v4.8.1-eks-1-33-1\n -
image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-resizer:v1.13.2-eks-1-33-1\n -
image: us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/livenessprobe:v2.15.0-eks-1-33-1\n -
image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/node-driver-registrar:v2.13.0-eks-1-33-1\n -
image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-snapshotter/csi-snapshotter:v8.2.1-eks-1-33-1\n -
image:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/volume-modifier-for-k8s:v0.5.1\n charts:\n -
repo: https://kubernetes-sigs.github.io/aws-ebs-csi-driver\n name:
aws-ebs-csi-driver\n version: 2.43.0\n namespace:
\"kube-system\"\ncharts:\n aws-ebs-csi-driver:\n storageClasses:\n # Default Storage
Class\n - name: spectro-storage-class\n # annotation
metadata\n annotations:\n storageclass.kubernetes.io/is-default-class:
\"true\"\n # label metadata\n # labels:\n # my-label-is:
supercool\n # defaults to WaitForFirstConsumer\n volumeBindingMode:
WaitForFirstConsumer\n # defaults to Delete\n reclaimPolicy:
Delete\n parameters:\n # File system type: xfs, ext2, ext3,
ext4\n csi.storage.k8s.io/fstype: \"ext4\"\n # EBS volume type: io1, io2, gp2, gp3, sc1,
st1, standard\n type: \"gp2\"\n # I/O operations per second per GiB. Required when io1
or io2 volume type is specified.\n # iopsPerGB: \"\"\n # Applicable only when io1 or io2
volume type is specified\n # allowAutoIOPSPerGBIncrease: false\n # I/O operations per
second. Applicable only for gp3 volumes.\n # iops: \"\"\n # Throughput in MiB/s.
Applicable only for gp3 volumes.\n # throughput: \"\"\n # Whether the volume should be
encrypted or not\n # encrypted: \"\"\n # The full ARN of the key to use when encrypting
the volume. When not specified, the default KMS key is used.\n # kmsKeyId: \"\"\n # Additional
Storage Class \n # - name: addon-storage-class\n #
annotations:\n # storageclass.kubernetes.io/is-default-class: \"false\"\n #
labels:\n # my-label-is: supercool\n # volumeBindingMode: WaitForFirstConsumer\n #
reclaimPolicy: Delete\n # parameters:\n # csi.storage.k8s.io/fstype: \"ext4\"\n # type:
\"gp2\"\n # iopsPerGB: \"\"\n # allowAutoIOPSPerGBIncrease: false\n # iops: \"\"\n #
throughput: \"\"\n # encrypted: \"\"\n # kmsKeyId: \"\"\n\n image:\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/aws-ebs-csi-driver\n # Overrides the image
tag whose default is v{{ .Chart.AppVersion }}\n tag: \"v1.43.0\"\n pullPolicy:
IfNotPresent\n # -- Custom labels to add into metadata\n customLabels: {}\n # k8s-app:
aws-ebs-csi-driver\n\n sidecars:\n provisioner:\n env:
[]\n image:\n pullPolicy: IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-provisioner\n tag:
\"v5.2.0-eks-1-33-1\"\n logLevel: 2\n # Additional parameters provided by
external-provisioner.\n additionalArgs: []\n # Grant additional permissions to
external-provisioner\n additionalClusterRoleRules:\n resources: {}\n # Tune leader
lease election for csi-provisioner.\n # Leader election is on by
default.\n leaderElection:\n enabled: true\n # Optional values to tune lease
behavior.\n # The arguments provided must be in an acceptable time.ParseDuration
format.\n # Ref: https://pkg.go.dev/flag#Duration\n # leaseDuration:
\"15s\"\n # renewDeadline: \"10s\"\n # retryPeriod:
\"5s\"\n securityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n attacher:\n env: []\n image:\n pullPolicy:
IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-attacher\n tag:
\"v4.8.1-eks-1-33-1\"\n # Tune leader lease election for csi-attacher.\n # Leader election
is on by default.\n leaderElection:\n enabled: true\n # Optional values to tune
lease behavior.\n # The arguments provided must be in an acceptable time.ParseDuration
format.\n # Ref: https://pkg.go.dev/flag#Duration\n # leaseDuration:
\"15s\"\n # renewDeadline: \"10s\"\n # retryPeriod: \"5s\"\n logLevel:
2\n # Additional parameters provided by external-attacher.\n additionalArgs: []\n #
Grant additional permissions to external-attacher\n additionalClusterRoleRules:
[]\n resources: {}\n securityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n snapshotter:\n # Enables the snapshotter sidecar even if the snapshot CRDs are not
installed\n forceEnable: false\n env: []\n image:\n pullPolicy:
IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-snapshotter/csi-snapshotter\n tag:
\"v8.2.1-eks-1-33-1\"\n logLevel: 2\n # Additional parameters provided by
csi-snapshotter.\n additionalArgs: []\n # Grant additional permissions to
csi-snapshotter\n additionalClusterRoleRules: []\n resources:
{}\n securityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n livenessProbe:\n image:\n pullPolicy: IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/livenessprobe\n tag:
\"v2.15.0-eks-1-33-1\"\n # Additional parameters provided by
livenessprobe.\n additionalArgs: []\n resources:
{}\n securityContext:\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n resizer:\n env: []\n image:\n pullPolicy:
IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/external-resizer\n tag:
\"v1.13.2-eks-1-33-1\"\n # Tune leader lease election for csi-resizer.\n # Leader election
is on by default.\n leaderElection:\n enabled: true\n # Optional values to tune
lease behavior.\n # The arguments provided must be in an acceptable time.ParseDuration
format.\n # Ref: https://pkg.go.dev/flag#Duration\n # leaseDuration:
\"15s\"\n # renewDeadline: \"10s\"\n # retryPeriod: \"5s\"\n logLevel:
2\n # Additional parameters provided by external-resizer.\n additionalArgs: []\n #
Grant additional permissions to external-resizer\n additionalClusterRoleRules:
[]\n resources: {}\n securityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n nodeDriverRegistrar:\n env: []\n image:\n pullPolicy:
IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/node-driver-registrar\n tag:
\"v2.13.0-eks-1-33-1\"\n logLevel: 2\n # Additional parameters provided by
node-driver-registrar.\n additionalArgs: []\n resources:
{}\n securityContext:\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n livenessProbe:\n exec:\n command:\n -
/csi-node-driver-registrar\n -
--kubelet-registration-path=$(DRIVER_REG_SOCK_PATH)\n -
--mode=kubelet-registration-probe\n initialDelaySeconds: 30\n periodSeconds:
90\n timeoutSeconds: 15\n volumemodifier:\n env:
[]\n image:\n pullPolicy: IfNotPresent\n repository:
us-docker.pkg.dev/palette-images/packs/csi-aws-ebs/1.43.0/volume-modifier-for-k8s\n tag:
\"v0.5.1\"\n leaderElection:\n enabled: true\n # Optional values to tune lease
behavior.\n # The arguments provided must be in an acceptable time.ParseDuration
format.\n # Ref: https://pkg.go.dev/flag#Duration\n # leaseDuration:
\"15s\"\n # renewDeadline: \"10s\"\n # retryPeriod: \"5s\"\n logLevel:
2\n # Additional parameters provided by volume-modifier-for-k8s.\n additionalArgs:
[]\n resources: {}\n securityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n proxy:\n http_proxy:\n no_proxy:\n imagePullSecrets:
[]\n nameOverride:\n fullnameOverride:\n awsAccessSecret:\n name: aws-secret\n keyId:
key_id\n accessKey: access_key\n controller:\n batching:
true\n volumeModificationFeature:\n enabled: false\n # Additional parameters provided by
aws-ebs-csi-driver controller.\n additionalArgs: []\n sdkDebugLog: false\n loggingFormat:
text\n affinity:\n nodeAffinity:\n preferredDuringSchedulingIgnoredDuringExecution:\n -
weight: 1\n preference:\n matchExpressions:\n - key:
eks.amazonaws.com/compute-type\n operator:
NotIn\n values:\n - fargate\n -
auto\n -
hybrid\n podAntiAffinity:\n preferredDuringSchedulingIgnoredDuringExecution:\n -
podAffinityTerm:\n labelSelector:\n matchExpressions:\n -
key: app\n operator: In\n values:\n -
ebs-csi-controller\n topologyKey: kubernetes.io/hostname\n weight:
100\n # The default filesystem type of the volume to provision when fstype is unspecified in the
StorageClass.\n # If the default is not set and fstype is unset in the StorageClass, then no fstype
will be set\n defaultFsType: ext4\n env: []\n # Use envFrom to reference ConfigMaps and
Secrets across all containers in the deployment\n envFrom: []\n # If set, add pv/pvc metadata to
plugin create and modify requests as parameters.\n extraCreateMetadata: true\n # Extra volume
tags to attach to each dynamically provisioned volume.\n # ---\n #
extraVolumeTags:\n # key1: value1\n # key2: value2\n extraVolumeTags:
{}\n httpEndpoint:\n # (deprecated) The TCP network address where the prometheus metrics
endpoint\n # will run (example: `:8080` which corresponds to port 8080 on local host).\n # The
default is empty string, which means metrics endpoint is disabled.\n # ---\n enableMetrics:
false\n serviceMonitor:\n # Enables the ServiceMonitor resource even if the
prometheus-operator CRDs are not installed\n forceEnable: false\n # Additional labels for
ServiceMonitor object\n labels:\n release: prometheus\n interval: \"15s\"\n #
If set to true, AWS API call metrics will be exported to the following\n # TCP endpoint:
\"0.0.0.0:3301\"\n # ---\n # ID of the Kubernetes cluster used for tagging provisioned EBS
volumes (optional).\n k8sTagClusterId:\n logLevel: 2\n userAgentExtra:
\"helm\"\n nodeSelector: {}\n deploymentAnnotations: {}\n podAnnotations:
{}\n podLabels: {}\n podDisruptionBudget:\n # Warning: Disabling PodDisruptionBudget may
lead to delays in stateful workloads starting due to controller\n # pod restarts or
evictions.\n enabled: true\n # unhealthyPodEvictionPolicy:\n priorityClassName:
system-cluster-critical\n # AWS region to use. If not specified then the region will be looked up via
the AWS EC2 metadata\n # service.\n # ---\n # region:
us-east-1\n region:\n replicaCount: 2\n revisionHistoryLimit:
10\n socketDirVolume:\n emptyDir: {}\n updateStrategy:\n type:
RollingUpdate\n rollingUpdate:\n maxUnavailable: 1\n # type: RollingUpdate\n #
rollingUpdate:\n # maxSurge: 0\n # maxUnavailable:
1\n resources:\n requests:\n cpu: 10m\n memory:
40Mi\n limits:\n memory: 256Mi\n cpu: 100m\n serviceAccount:\n # A
service account will be created for you if set to true. Set to false if you want to use your
own.\n create: true\n name: ebs-csi-controller-sa\n annotations: {}\n ##
Enable if EKS IAM for SA is used\n # eks.amazonaws.com/role-arn:
arn:<partition>:iam::<account>:role/ebs-csi-role\n automountServiceAccountToken:
true\n tolerations:\n - key: CriticalAddonsOnly\n operator: Exists\n - effect:
NoExecute\n operator: Exists\n tolerationSeconds: 300\n # TSCs without the label
selector stanza\n #\n # Example:\n #\n # topologySpreadConstraints:\n # -
maxSkew: 1\n # topologyKey: topology.kubernetes.io/zone\n # whenUnsatisfiable:
ScheduleAnyway\n # - maxSkew: 1\n # topologyKey:
kubernetes.io/hostname\n # whenUnsatisfiable: ScheduleAnyway\n topologySpreadConstraints:
[]\n # securityContext on the controller pod\n securityContext:\n runAsNonRoot:
true\n runAsUser: 1000\n runAsGroup: 1000\n fsGroup: 1000\n # Add additional
volume mounts on the controller with controller.volumes and controller.volumeMounts\n volumes:
[]\n # Add additional volumes to be mounted onto the controller:\n # - name:
custom-dir\n # hostPath:\n # path: /path/to/dir\n # type:
Directory\n volumeMounts: []\n # And add mount paths for those additional volumes:\n # -
name: custom-dir\n # mountPath: /mount/path\n # ---\n # securityContext on the controller
container (see sidecars for securityContext on sidecar
containers)\n containerSecurityContext:\n seccompProfile:\n type:
RuntimeDefault\n readOnlyRootFilesystem: true\n allowPrivilegeEscalation:
false\n initContainers: []\n # containers to be run before the controller's container
starts.\n #\n # Example:\n #\n # - name: wait\n # image:
public.ecr.aws/amazonlinux/amazonlinux\n # command: [ 'sh', '-c', \"sleep 20\" ]\n # Enable
opentelemetry tracing for the plugin running on the daemonset\n otelTracing:
{}\n # otelServiceName: ebs-csi-controller\n # otelExporterEndpoint:
\"http://localhost:4317\"\n\n # Enable dnsConfig for the controller and node pods\n dnsConfig:
{}\n node:\n # Enable SELinux-only optimizations on the EBS CSI Driver node pods\n # Must
only be set true if all linux nodes in the DaemonSet have SELinux enabled\n selinux:
false\n env: []\n envFrom: []\n kubeletPath: /var/lib/kubelet\n loggingFormat:
text\n logLevel: 2\n enableMetrics: false\n priorityClassName:\n additionalArgs:
[]\n affinity:\n nodeAffinity:\n requiredDuringSchedulingIgnoredDuringExecution:\n nodeSelectorTerms:\n -
matchExpressions:\n - key: eks.amazonaws.com/compute-type\n operator:
NotIn\n values:\n - fargate\n -
auto\n - hybrid\n - key:
node.kubernetes.io/instance-type\n operator:
NotIn\n values:\n - a1.medium\n -
a1.large\n - a1.xlarge\n - a1.2xlarge\n -
a1.4xlarge\n nodeSelector: {}\n daemonSetAnnotations: {}\n podAnnotations:
{}\n podLabels: {}\n terminationGracePeriodSeconds: 30\n tolerateAllTaints:
true\n tolerations:\n - operator: Exists\n effect:
NoExecute\n tolerationSeconds: 300\n resources:\n requests:\n cpu:
10m\n memory: 40Mi\n limits:\n memory: 256Mi\n cpu:
100m\n revisionHistoryLimit: 10\n probeDirVolume:\n emptyDir:
{}\n serviceAccount:\n create: true\n name: ebs-csi-node-sa\n annotations:
{}\n ## Enable if EKS IAM for SA is used\n # eks.amazonaws.com/role-arn:
arn:<partition>:iam::<account>:role/ebs-csi-role\n automountServiceAccountToken: true\n #
Enable the linux daemonset creation\n enableLinux: true\n enableWindows: true\n # Warning:
This option will be removed in a future release. It is a temporary workaround for users unable to
immediately migrate off of older kernel versions.\n # Formats XFS volumes with
bigtime=0,inobtcount=0,reflink=0, for mounting onto nodes with linux kernel version <= 5.4.\n # Note
that XFS volumes formatted with this option will only have timestamp records until 2038.\n legacyXFS:
false\n # The number of attachment slots to reserve for system use (and not to be used for CSI
volumes)\n # When this parameter is not specified (or set to -1), the EBS CSI Driver will attempt to
determine the number of reserved slots via heuristic\n # Cannot be specified at the same time as
`node.volumeAttachLimit`\n reservedVolumeAttachments:\n # The \"maximum number of attachable
volumes\" per node\n # Cannot be specified at the same time as
`node.reservedVolumeAttachments`\n volumeAttachLimit:\n updateStrategy:\n type:
RollingUpdate\n rollingUpdate:\n maxUnavailable: \"10%\"\n hostNetwork:
false\n # securityContext on the node pod\n securityContext:\n # The node pod must be run
as root to bind to the registration/driver sockets\n runAsNonRoot: false\n runAsUser:
0\n runAsGroup: 0\n fsGroup: 0\n # allows you to deploy aws-ebs-csi-node daemonset to
separate namespace (make sure namespace exists before deploy)\n namespaceOverride: \"\"\n # Add
additional volume mounts on the node pods with node.volumes and node.volumeMounts\n volumes:
[]\n # Add additional volumes to be mounted onto the node pods:\n # - name:
custom-dir\n # hostPath:\n # path: /path/to/dir\n # type:
Directory\n volumeMounts: []\n # And add mount paths for those additional volumes:\n # -
name: custom-dir\n # mountPath: /mount/path\n # ---\n # securityContext on the node
container (see sidecars for securityContext on sidecar containers)\n # Privileged containers always
run as `Unconfined`, which means that they are not restricted by a seccomp
profile.\n containerSecurityContext:\n readOnlyRootFilesystem: true\n privileged:
true\n initContainers: []\n # containers to be run before the csi-node's container
starts.\n #\n # Example:\n #\n # - name: wait\n # image:
public.ecr.aws/amazonlinux/amazonlinux\n # command: [ 'sh', '-c', \"sleep 20\" ]\n # Enable
opentelemetry tracing for the plugin running on the daemonset\n otelTracing:
{}\n # otelServiceName: ebs-csi-node\n # otelExporterEndpoint:
\"http://localhost:4317\"\n additionalDaemonSets:\n # Additional node DaemonSets, using the node
config structure\n # See docs/additional-daemonsets.md for more information\n #\n #
example:\n # nodeSelector:\n # node.kubernetes.io/instance-type:
c5.large\n # volumeAttachLimit: 15\n\n # Enable compatibility for the A1 instance family via use
of an AL2-based image in a separate DaemonSet\n # a1CompatibilityDaemonSet: true\n # storageClasses:
[]\n # Add StorageClass resources like:\n # - name: ebs-sc\n # # annotation
metadata\n # annotations:\n # storageclass.kubernetes.io/is-default-class: \"true\"\n # #
label metadata\n # labels:\n # my-label-is: supercool\n # # defaults to
WaitForFirstConsumer\n # volumeBindingMode: WaitForFirstConsumer\n # # defaults to
Delete\n # reclaimPolicy: Retain\n # parameters:\n # encrypted:
\"true\"\n defaultStorageClass:\n enabled: false\n volumeSnapshotClasses: []\n # Add
VolumeSnapshotClass resources like:\n # - name: ebs-vsc\n # # annotation
metadata\n # annotations:\n # snapshot.storage.kubernetes.io/is-default-class:
\"true\"\n # # label metadata\n # labels:\n # my-label-is: supercool\n # #
deletionPolicy must be specified\n # deletionPolicy: Delete\n # parameters:\n\n # Use old
CSIDriver without an fsGroupPolicy set\n # Intended for use with older clusters that cannot easily
replace the CSIDriver object\n # This parameter should always be false for new
installations\n useOldCSIDriver: false\n # Deploy EBS CSI Driver without controller and associated
resources\n nodeComponentOnly: false\n # Instruct the AWS SDK to use AWS FIPS endpoints, and deploy
container built with BoringCrypto (a FIPS-validated cryptographic library) instead of the Go
default\n #\n # The EBS CSI Driver FIPS images have not undergone FIPS certification, and no
official guarnatee is made about the compliance of these images under the FIPS standard\n # Users
relying on these images for FIPS compliance should perform their own independent evaluation\n fips:
false"
providerConfigRef:
name: defaultThe cluster profile contains the following core infrastructure layers.
Pack Type Registry Pack Name Pack Version OS Public Repo ubuntu-aws22.04Kubernetes Public Repo kubernetes1.32.4Network Public Repo cni-calico3.30.1Storage Public Repo csi-aws-ebs1.43.0tipIf you want to use different packs in your cluster profile, use the Palette UI to simulate creating a cluster profile to gather the pack's required values. During the cluster profile creation, select the API button in the top-right to display the API payload. Replace the values of each pack's
name,tag,uid,registryUid, andvaluesas necessary. For information on creating cluster profiles, refer to our Create Cluster Profiles guide. -
Create the cluster profile in Palette.
kubectl apply --filename crossplane-aws/cluster-profile-aws.yamlExample outputprofile.cluster.palette.crossplane.io/aws-crossplane-cluster-profile created -
Issue the commands below to get the ID of the cluster profile once it is created and save it as a variable.
kubectl wait --for=condition=Ready profile.cluster.palette.crossplane.io/aws-crossplane-cluster-profile
CLUSTER_PROFILE_ID=$(kubectl get profile.cluster.palette.crossplane.io aws-crossplane-cluster-profile --output jsonpath='{.status.atProvider.id}')
echo Cluster Profile ID: $CLUSTER_PROFILE_IDExample outputprofile.cluster.palette.crossplane.io/aws-crossplane-cluster-profile condition met
Cluster Profile ID: 68960ddf222fa7f0046e80ed -
Next, set your Palette AWS account name as a variable. Replace

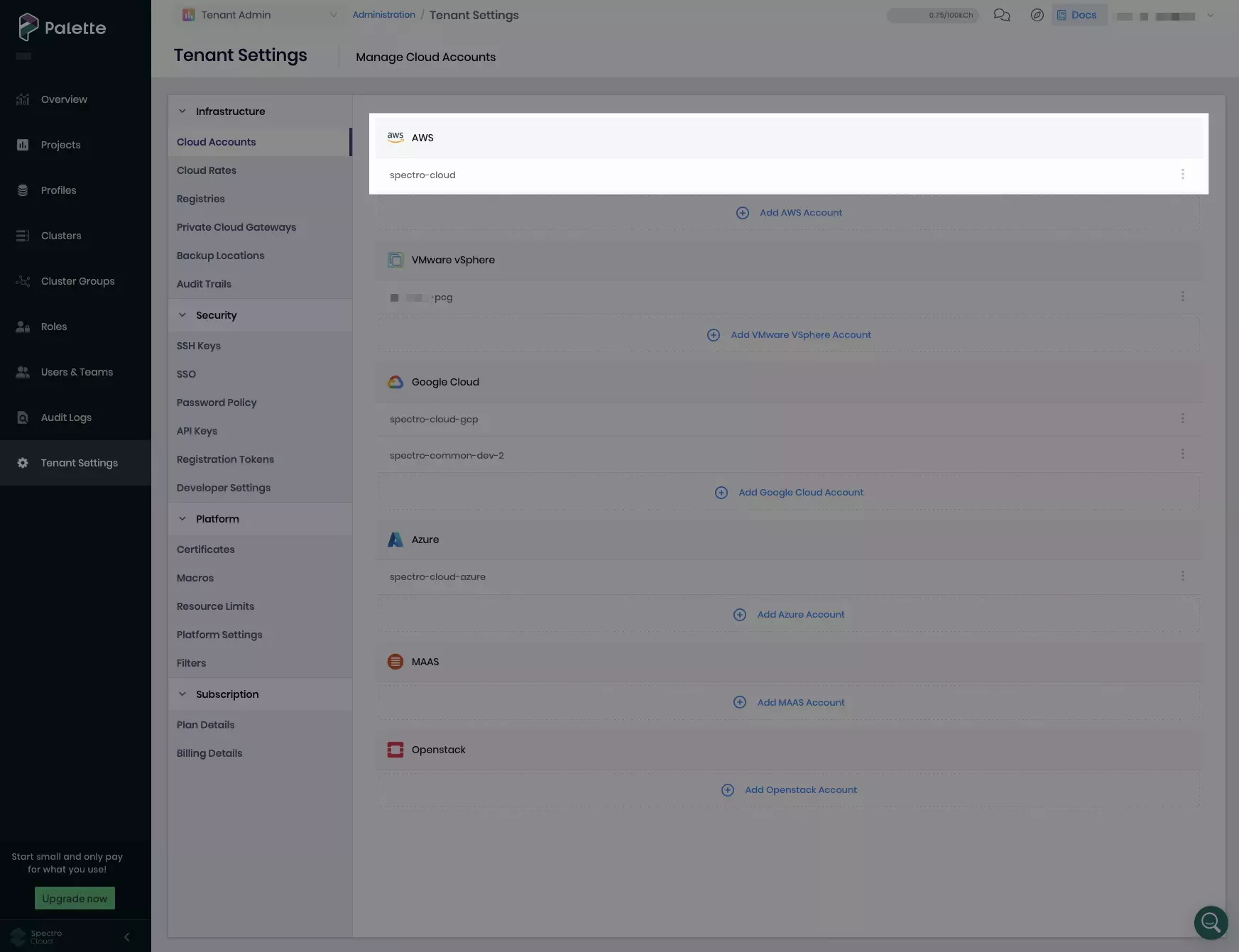

<aws-account-name>with the name under which you registered your AWS account in Palette. This is the display name that appears under Cloud Accounts in Tenant Settings or Project Settings, not the actual name of your AWS account.PALETTE_AWS_CLOUD_ACCOUNT_NAME=<aws-account-name>In the example below, the Palette AWS account name is
spectro-cloud.
-
Next, fetch the ID of your AWS cloud account registered in Palette by invoking the
cloudaccountsPalette API.AWS_CLOUD_ACCOUNT_ID=$(curl --location --request GET 'https://api.spectrocloud.com/v1/cloudaccounts/aws' \
-H 'Accept: application/json' \
-H "ApiKey: $PALETTE_API_KEY" \
| jq --arg name "$PALETTE_AWS_CLOUD_ACCOUNT_NAME" '.items[] | select(.metadata.name == $name) | .metadata.uid' -r)
echo Cloud Account ID: $AWS_CLOUD_ACCOUNT_ID -
Use the following command to create a file to store your AWS IaaS cluster configuration. Replace
<ssh-key-name>with the name of your AWS EC2 SSH key that belongs to the region where you want to deploy your cluster.Optionally, edit the region, availability zone, instance type, and number of cluster nodes according to your workload.
cat << EOF > crossplane-aws/cluster-aws.yaml
apiVersion: cluster.palette.crossplane.io/v1alpha1
kind: Aws
metadata:
name: aws-crossplane-cluster
namespace: crossplane-system
spec:
forProvider:
name: aws-crossplane-cluster
cloudConfig:
- sshKeyName: <ssh-key-name>
region: us-east-1
machinePool:
- azs:
- us-east-1a
count: 2
instanceType: t3.xlarge
name: machinepool1
- azs:
- us-east-1a
count: 1
instanceType: m4.2xlarge
name: controlplanepool
controlPlane: true
clusterProfile:
- id: $CLUSTER_PROFILE_ID
cloudAccountId: $AWS_CLOUD_ACCOUNT_ID
providerConfigRef:
name: default
EOF -
Create the AWS IaaS cluster.
kubectl apply --filename crossplane-aws/cluster-aws.yamlExample outputaws.cluster.palette.crossplane.io/aws-crossplane-cluster created -
Wait for the cluster to be created. Cluster provisioning may take up to 20 minutes.
kubectl wait --for=condition=Ready aws.cluster.palette.crossplane.io/aws-crossplane-cluster --timeout=1hOnce ready, you should receive output similar to the following.
Example outputaws.cluster.palette.crossplane.io/aws-crossplane-cluster condition met
Validate
-
Log in to Palette.
-
From the left main menu, select Clusters.
-
Verify the deployed cluster named
aws-crossplane-clusteris displayed and has a Cluster Status of Running and a Health status of Healthy.
